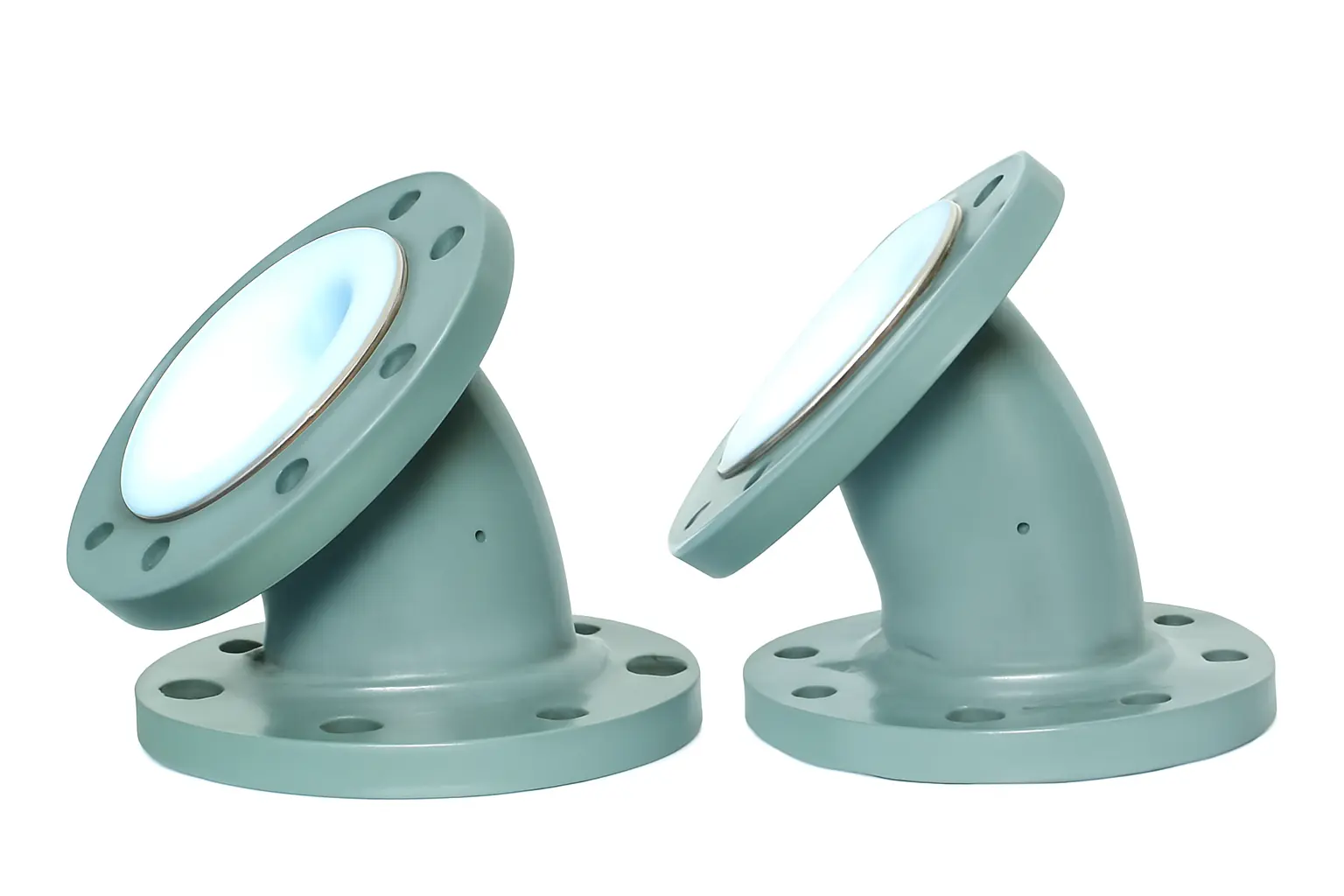

Lined Elbow 45° / 90°
Lined Elbow

Lined Elbow 45° / 90°

PTFE Lined 45° Elbow

Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 45° Housing ASTM A-234 GR.WPB ASTM A-234 GR.WPB SCH-40 As Per Manufacturer STD.
2 Flange (Slip-On) Carbon Steel ASTM A-105 / IS 2062 GR.A ANSI B 16.5 150 Class
3 Polymer PTFE ASTM D 4895 ASTM F1545:15a

PTFE Lined 90° Elbow

Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 90° Housing ASTM A-234 GR.WPB ASTM A-234 GR.WPB SCH-40 As Per Manufacturer STD.
2 Flange (Slip-On) Carbon Steel ASTM A-105 / IS 2062 GR.A ANSI B 16.5 150 Class
3 Polymer PTFE ASTM D 4895 ASTM F1545:15a

PFA / PP / PVDF / HDPE Lined 45° Elbow

Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 45° Cast Housing ASTM A-234 GR.WPB ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
P.P.ASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

PFA / PP / PVDF / HDPE Lined 90° Elbow

Part No. Item Material Spec. / STD Dimensional STD
1 Elbow 90° Cast Housing Ductile Iron ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
P.P.ASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

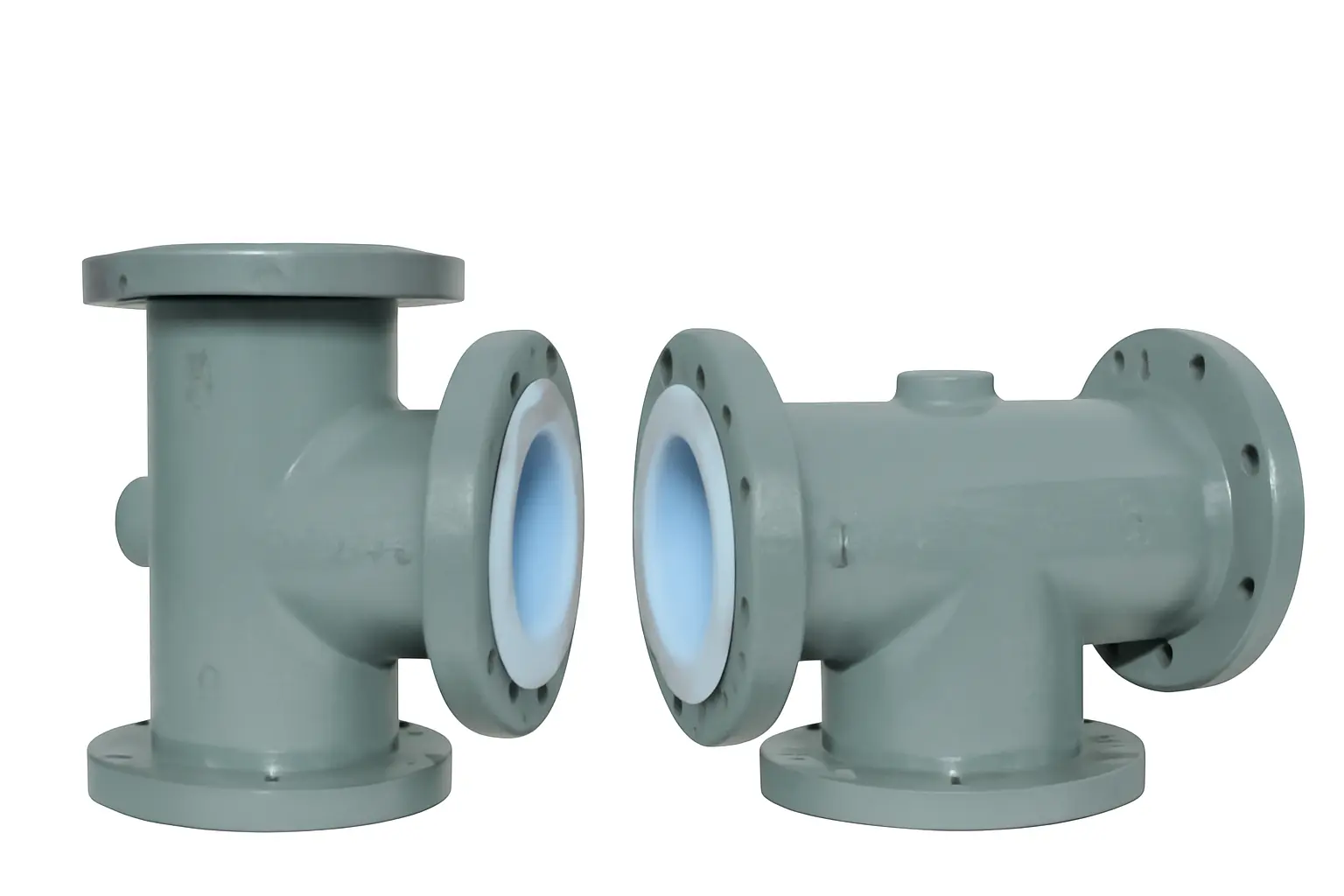

Lined Equal / Un-Equal Tee
Lined Equal / Un-Equal Tee

Lined Equal / Un-Equal Tee

PFA / PP / PVDF Lined Equal Tee

Part No. Item Material Spec. / STD Dimensional STD
1 Equal Tee Cast Housing Ductile Iron ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 4895 ASTM F1545:15a
P.P.ASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

PFA / PP / PVDF Lined Un-Equal (RED.) Tee

Part No. Item Material Spec. / STD Dimensional STD
1 RED. Tee Cast Housing Ductile Iron ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
P.P.ASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

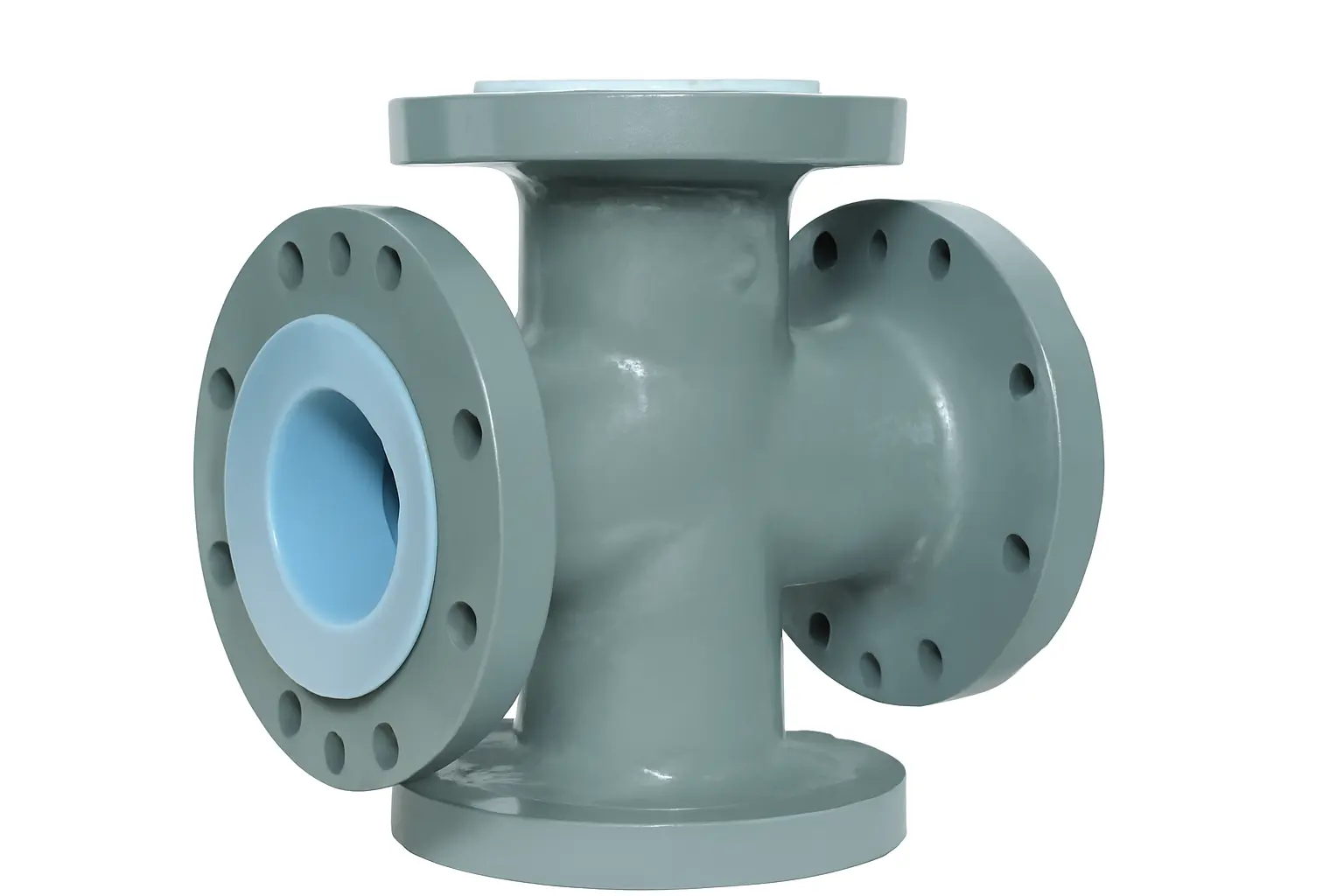

Lined Equal Cross
Lined Equal Cross

Lined Equal Cross

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Cross Cast Housing Ductile Iron ASTM A-395 60 / 40 / 18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 4895 ASTM F1545:15a
P.P.ASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

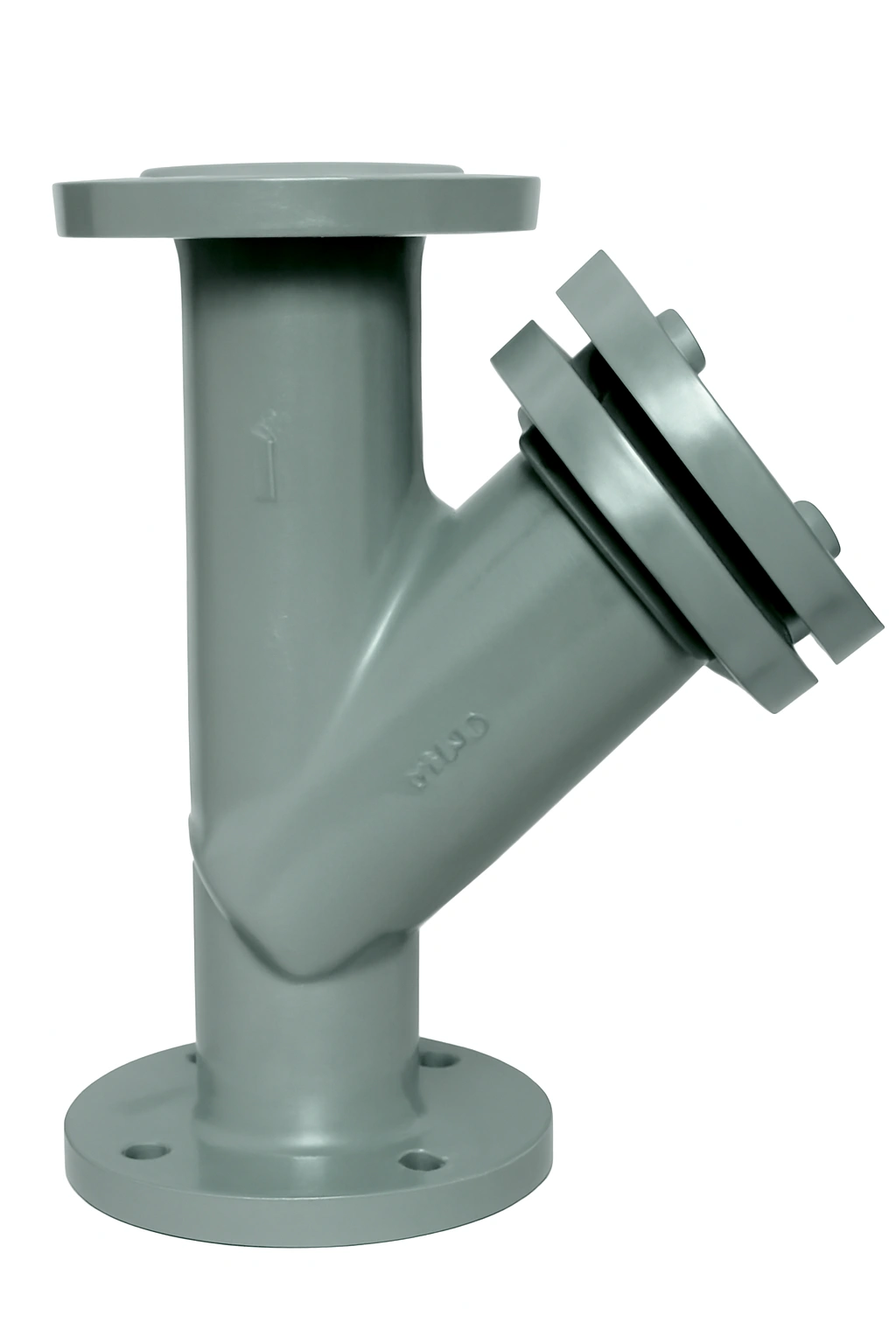

Lined Y-Type Strainer
Lined Y-Type Strainer

Lined Y-Type Strainer

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Seamless Pipe Carbon Steel ASTM A-106 GR B SCH 40 / 30 ANSI B 36.10
2 Flange (Flat Face) Carbon Steel ASTM A-105 / IS 2062 GR.A ANSI B 16.5 150 Class
4 Resin PTFE ASTM D 3307 ASTM F1545:15a
PPASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

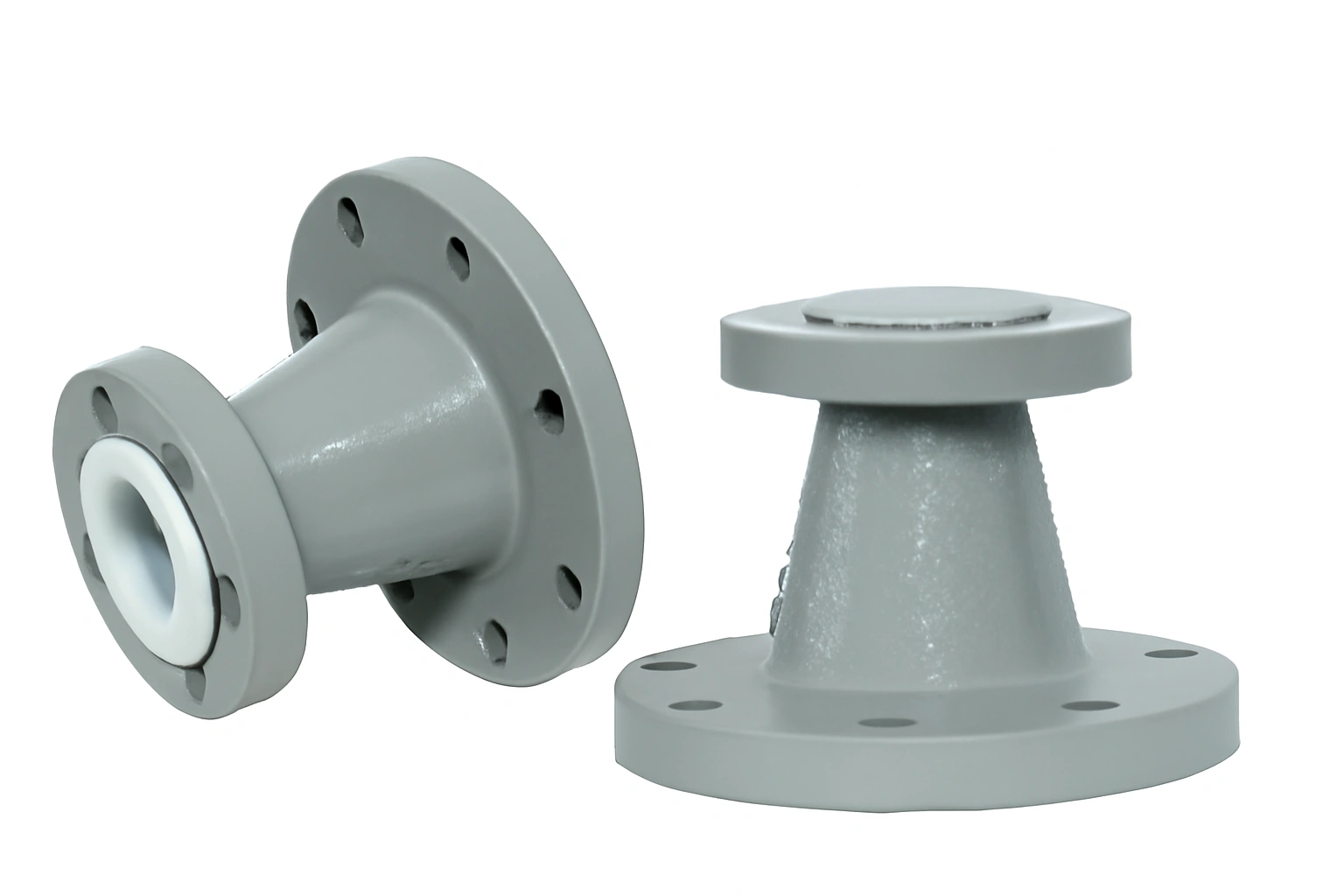

Concentric / Eccentric Reducer
Concentric / Eccentric Reducer

Concentric / Eccentric Reducer

Bill of Material

PFA / PP / PVDF / HDPE Lined Concentric Reducer

Part No. Item Material Spec. / STD Dimensional STD
1 CON. Red Cast Housing Ductile Iron ASTM A-395 60/40/18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
PPASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

PFA / PP / PVDF / HDPE Lined Eccentric Reducer

Part No. Item Material Spec. / STD Dimensional STD
1 ECC. Red Cast Housing Ductile Iron ASTM A-395 60/40/18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
PPASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

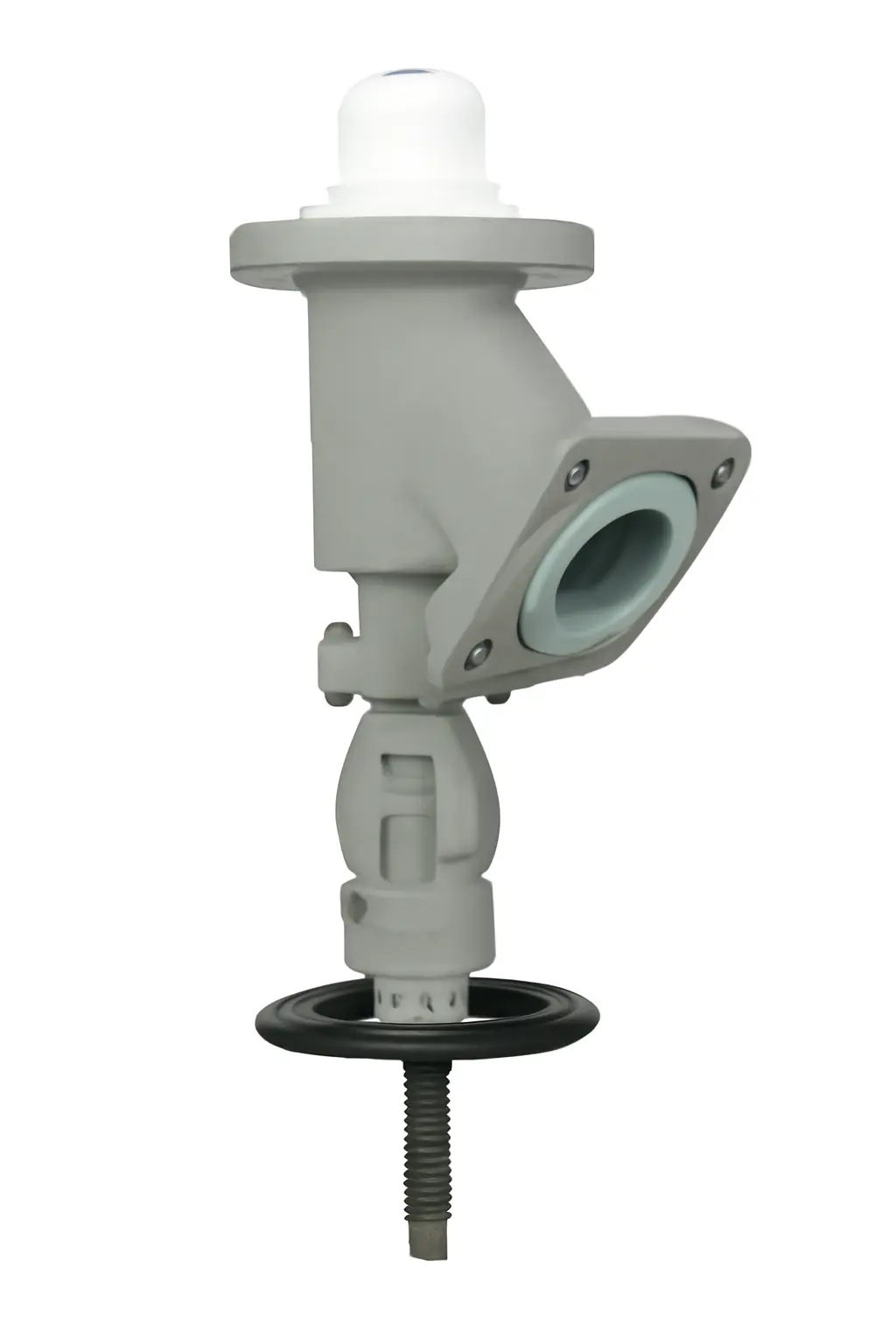

Lined Flush Bottom Valve
Lined Flush Bottom Valve

Lined Flush Bottom Valve

Design, Standard and Features

  • Interior valve bodies as well as the stem and ball are individually lined with PFA or PVDF/FEP.
  • Ball is fully encapsulated in PFA/FEP. Ceramic Balls are also available which are interchangeable.
  • Anti-blow out stem assembly for preventing stem blow out even when top gear is disassembled.
  • Short pattern face to face dimension in accordance with ANSI B16.10 and ANSI B 16.5, 150 lbs. (flange dimension) - facilitating replacement of fully lined or sleeved plug valves with Horizon lined ball valves without altering existing pipework.
  • Valves supplied with anti-static devices for protection against potentially dangerous electrostatic discharge.
  • Free floating Ball Valve Principle ensures the ball seals against the downstream seat ring giving a positive sealing force even when line pressure is low.
  • All inherent design features of a conventional ball valve such as low torque, quarter-turn operation, bubble tight shut off and a minimum pressure drop.
  • Valves have been satisfactorily tested for Helium Leak test to meet with ASME Sec V Article 10; witnessed by Independent Inspection Agency (TUV).

Construction Material

  • Valve bodies available in Ductile iron material - ASTM A395 (60-40-18) & in CAST carbon steel ASTM A216WCB.
  • Valve bodies can be supplied in all grades of stainless steel material as per request.
  • Refer Technical Datasheet for material specifications of individual components.

Low Torque for Easier Operation

  • Requires significantly lower torque for operation than equivalent plug valves.
  • Easy manual operation and considerably low actual figures.

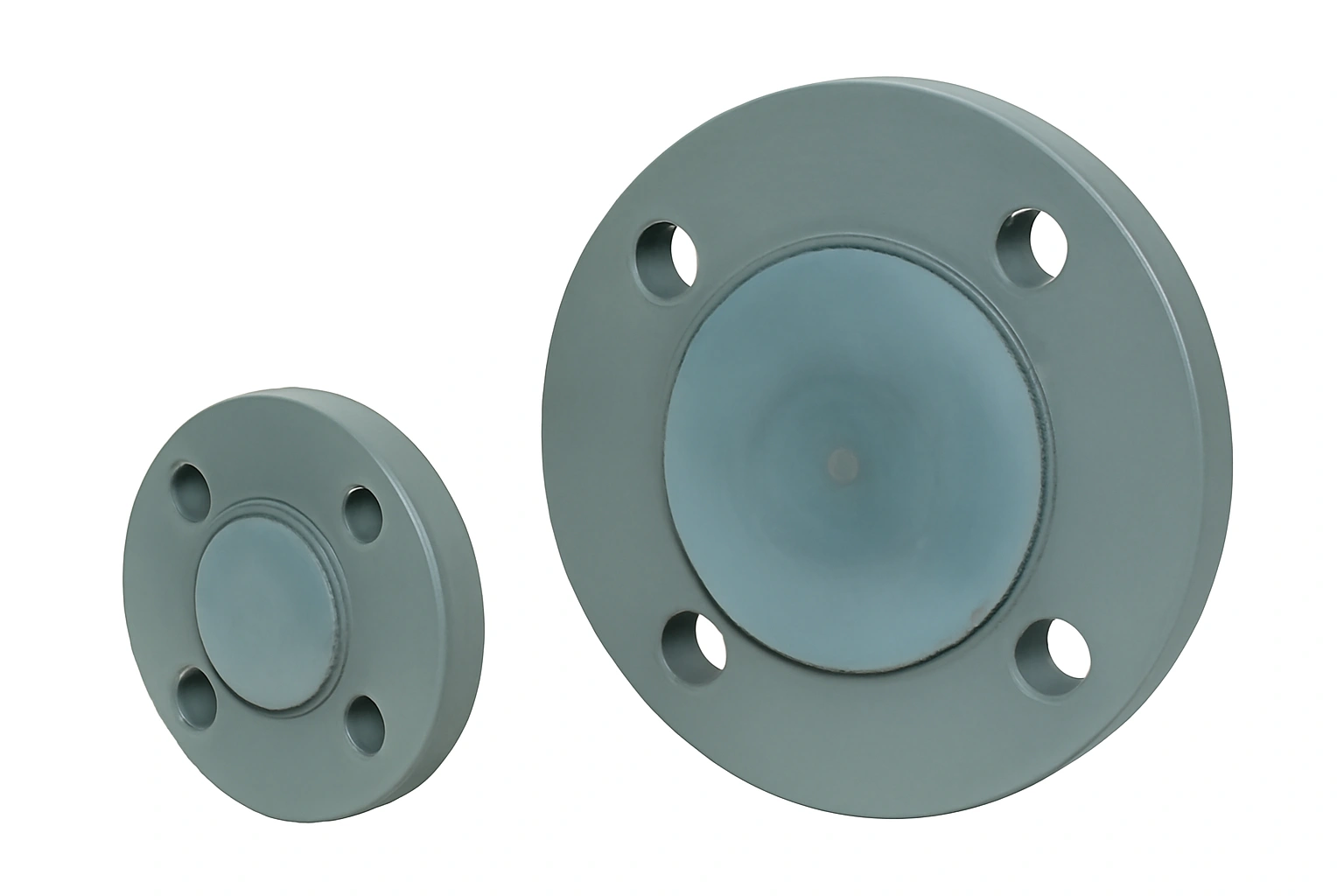

Lined Blind Flange
Lined Blind Flange

Lined Blind Flange

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Blind Flange Carbon Steel ASTM A-105 / IS 2062 GR.A ANSI B 16.5, # 150
2 Polymer PTFE ASTM D 4895 ASTM F1545:15a

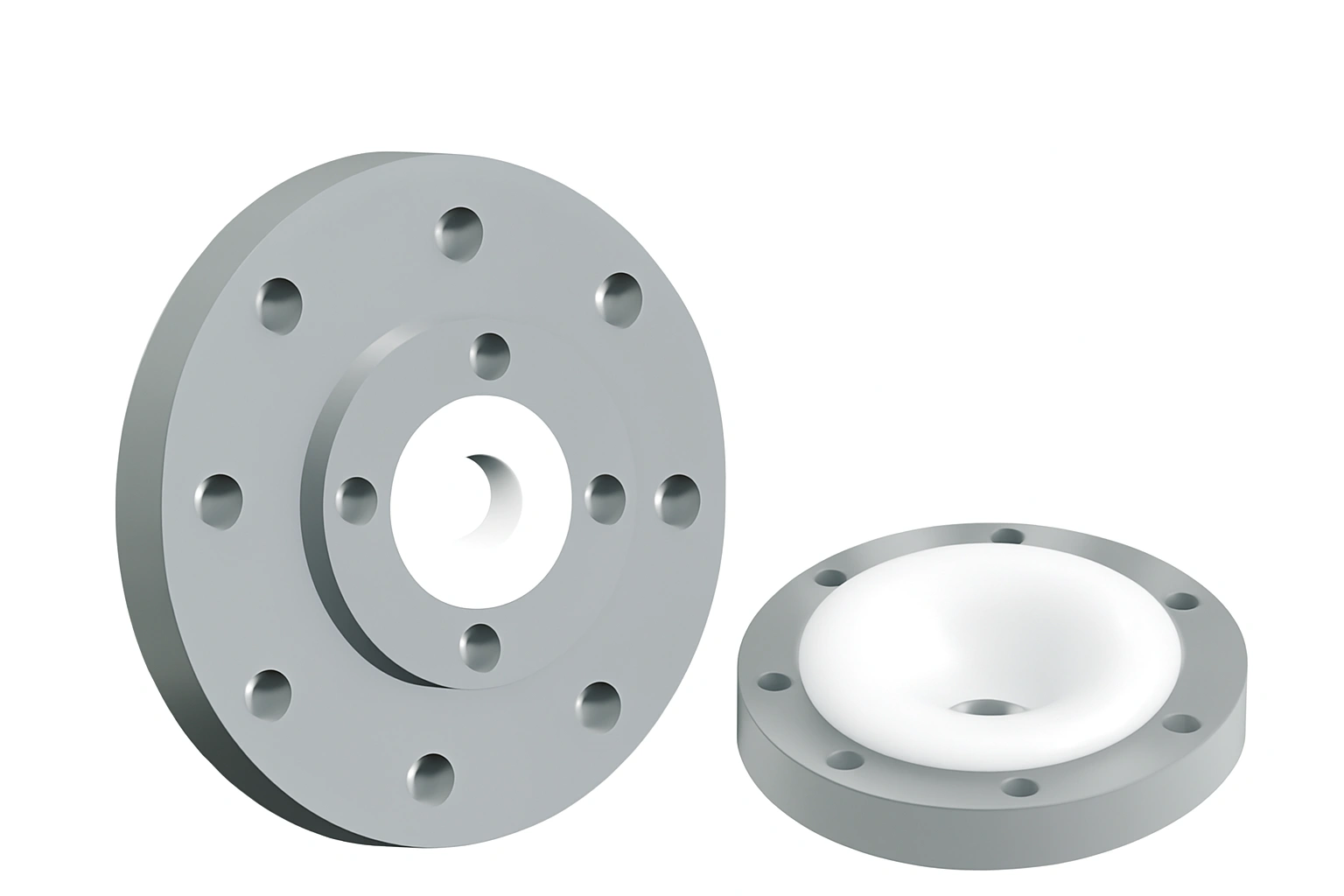

Lined Reducing Flange
Lined Reducing Flange

Lined Reducing Flange

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 RED. Flange Cast Housing Ductile Iron ASTM A-395 60/40/18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
PPASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

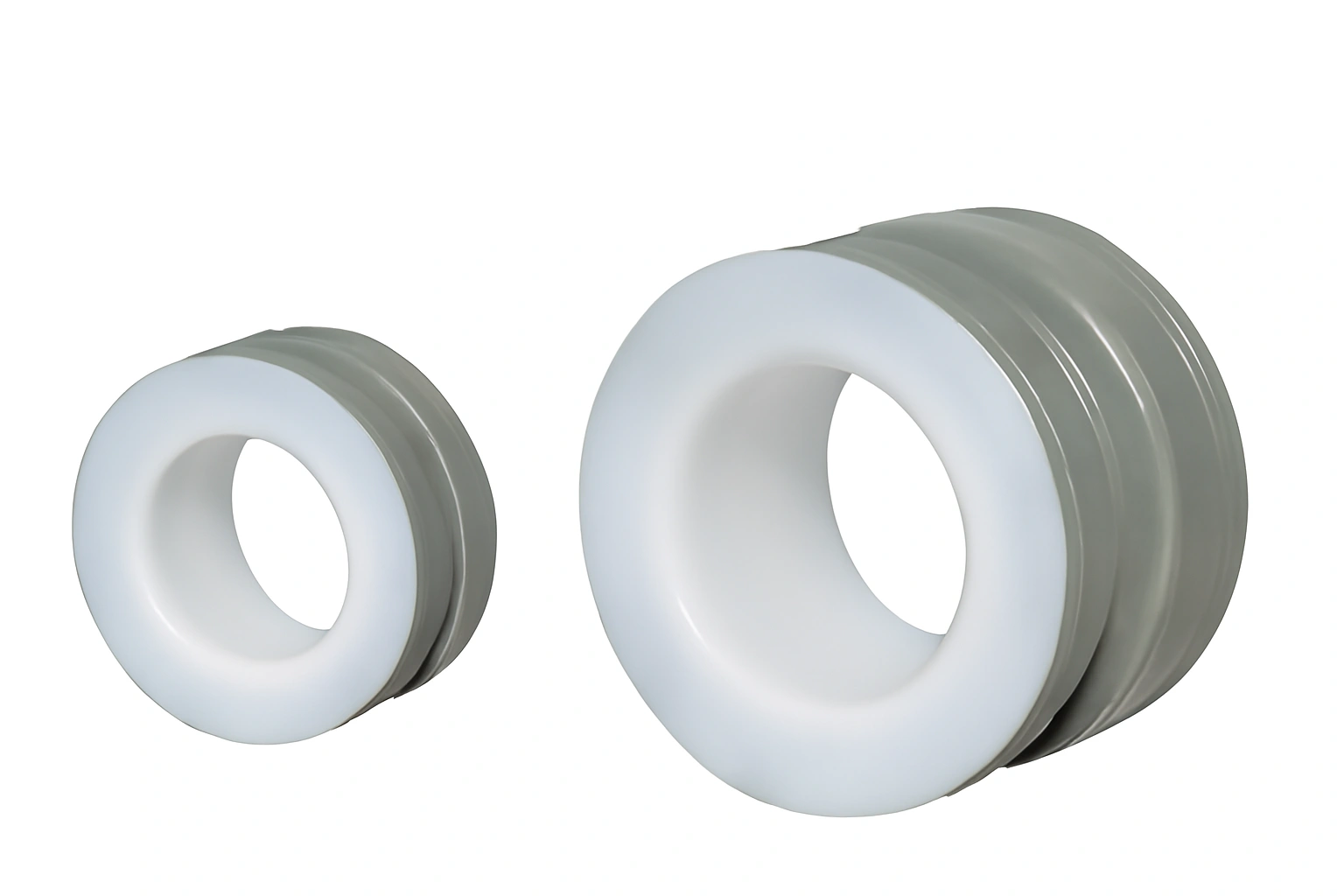

Lined Solid Spacer
Lined Solid Spacer

Lined Solid Spacer

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Solid Spacer PTFE ASTM A 4894 / ASTM A 4895 As Per Manufacturer Std.

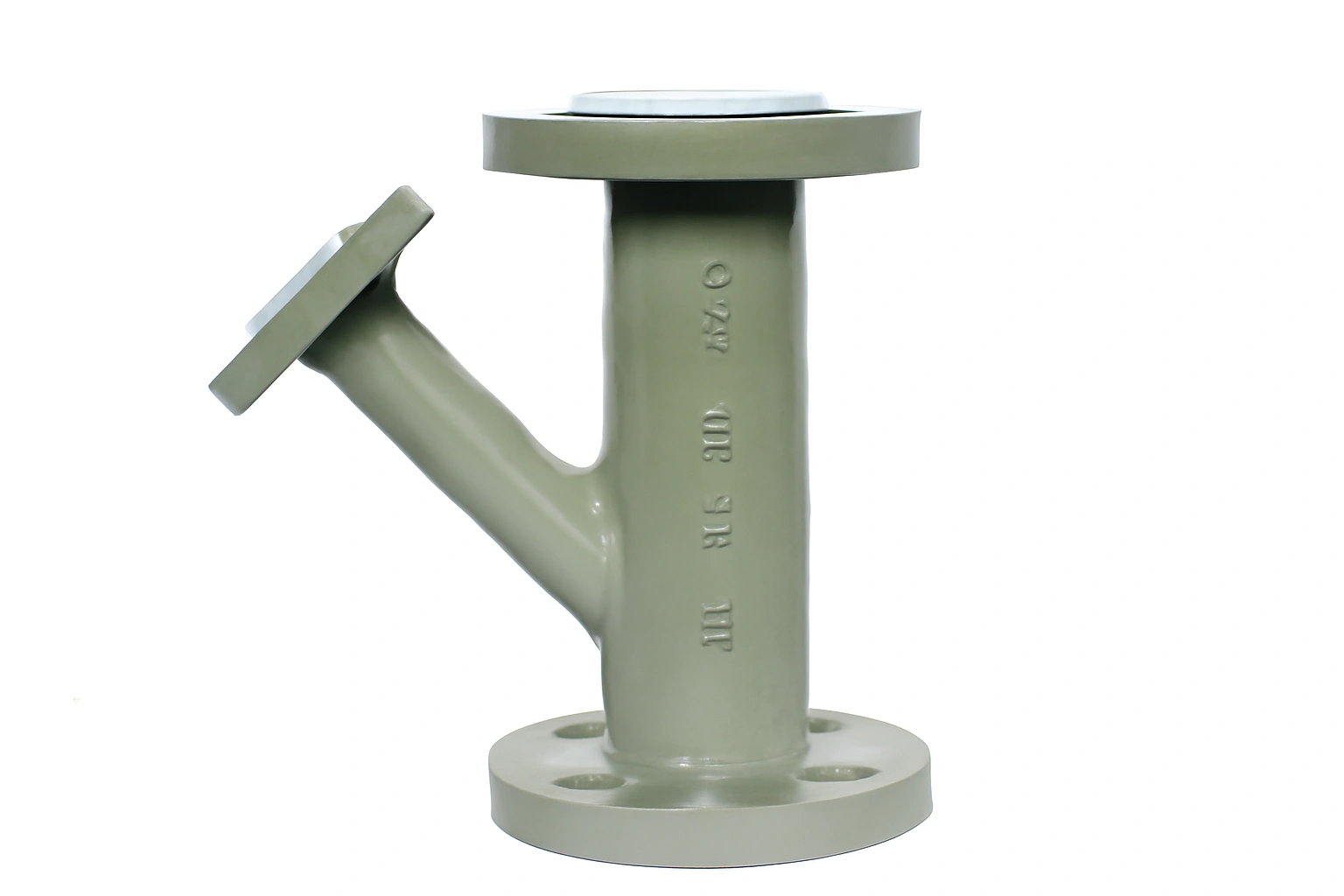

Lined Lateral Tee Equal
Lined Lateral Tee Equal

Lined Lateral Tee Equal

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Lateral Cast Housing Ductile Iron ASTM A-395 60/40/18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
PPASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350

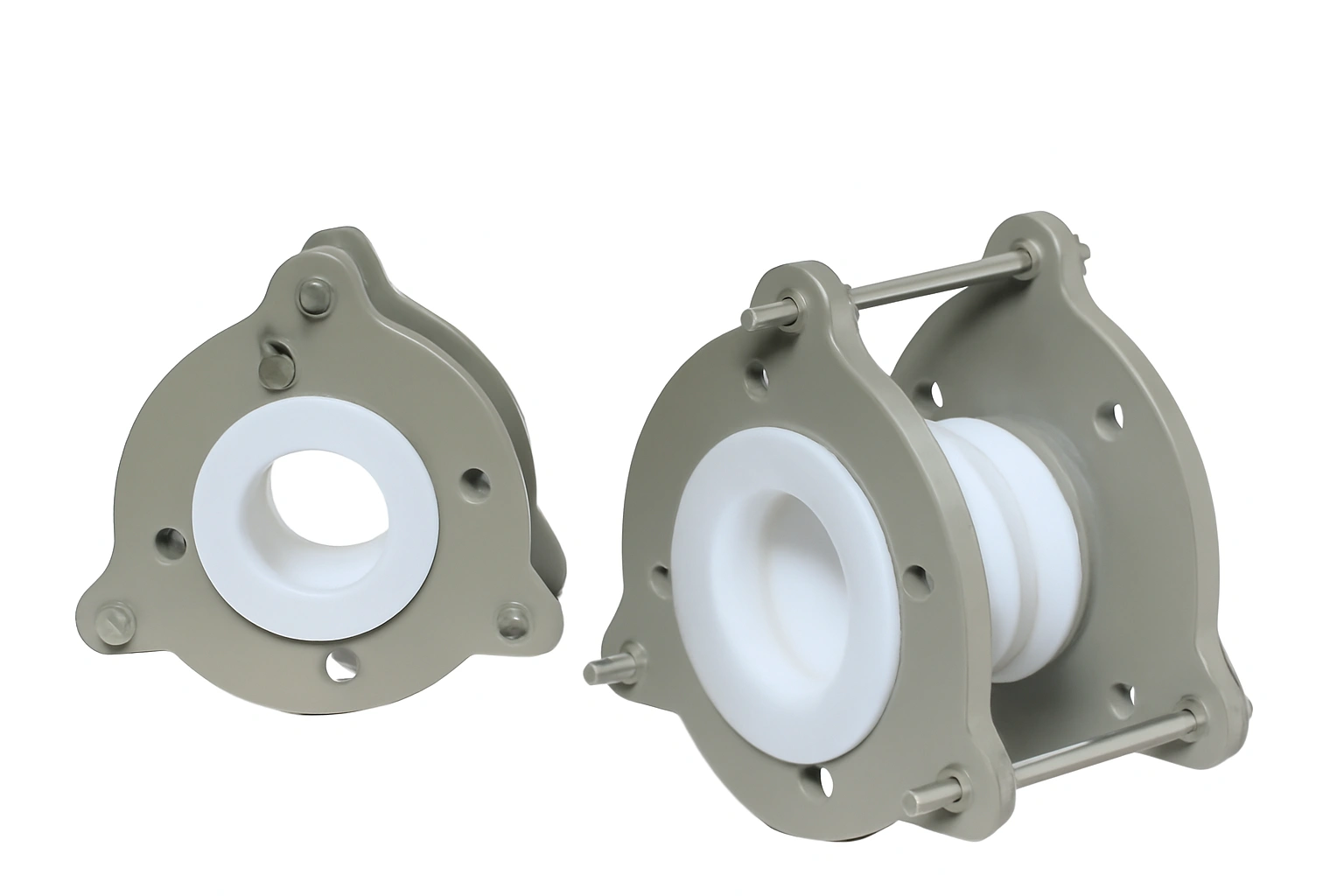

PTFE Bellow
PTFE Bellow

PTFE Bellow

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Flange Carbon Steel IS 2062 ANSI B 16.5 150 Class
2 Support Rings SS SS 304 As Per Manufacturer Std.
3 Resin PTFE ASTM D 4895 ASTM F1545:15a
4 Limit Indicator Carbon Steel As Per Manufacturer Std. As Per Manufacturer Std.

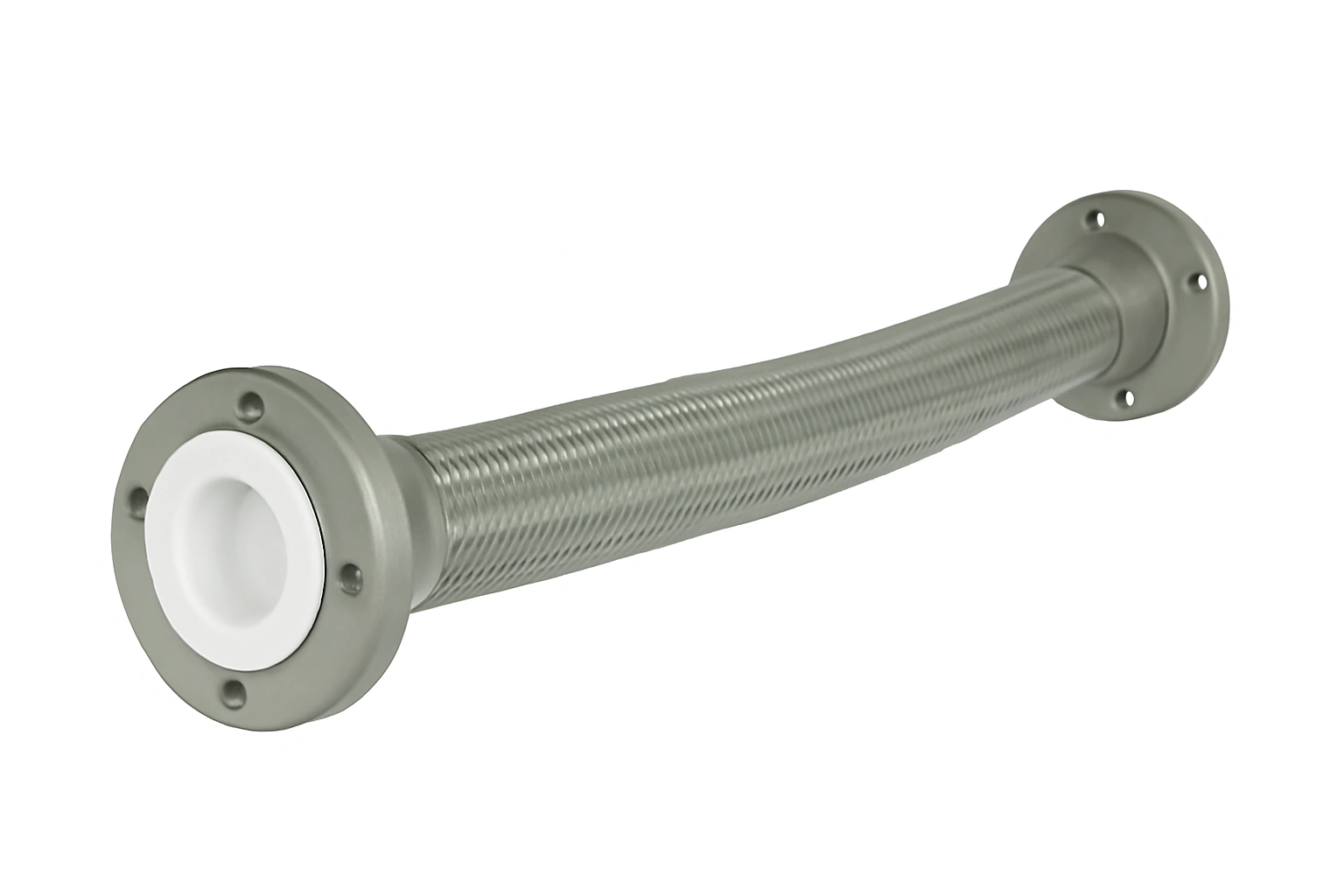

PTFE Lined Chemical Transfer Hose
PTFE Lined Chemical Transfer Hose

PTFE Lined Chemical Transfer Hose

Dimensional Data
Size (NB) B C D Liner Lining Thik (-0, +0.25) Flange Flange DIM.Std. Length Bend Radius (INCH)
Min.Max.
25527148PTFE2.67SS 304ANSI B 16.5 #150150300012"
40527868PTFE2.67-DO--DO-150300015"
50659088PTFE3.2-DO--DO-150300021"
806590117PTFE3.2-DO--DO-200300028"
10092104152PTFE3.5-DO--DO-300300046"
150106129203PTFE3.8-DO--DO-350300065"

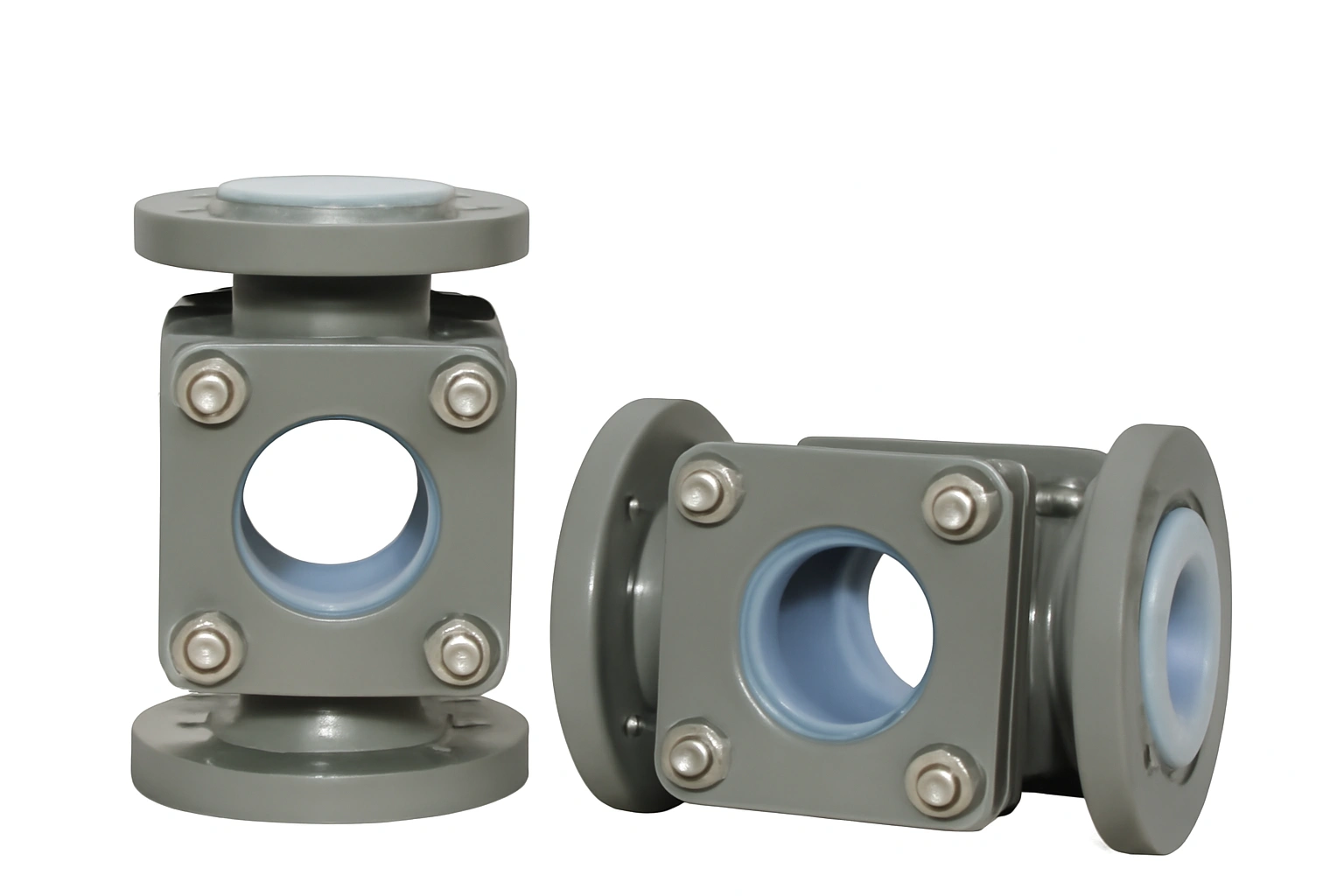

Sight Flow Indicator
Sight Flow Indicator

Sight Flow Indicator

Bill of Material
Item QTY. Designation Material
11BodyDuctile Iron A395 – PFA
22FlangeDuctile Iron A395 – PFA
32GlassBorosilicate Glass
42GasketPTFE
58 / 12STUDASTM A193 B8
68 / 12Hexagon NutASTM A193 B8

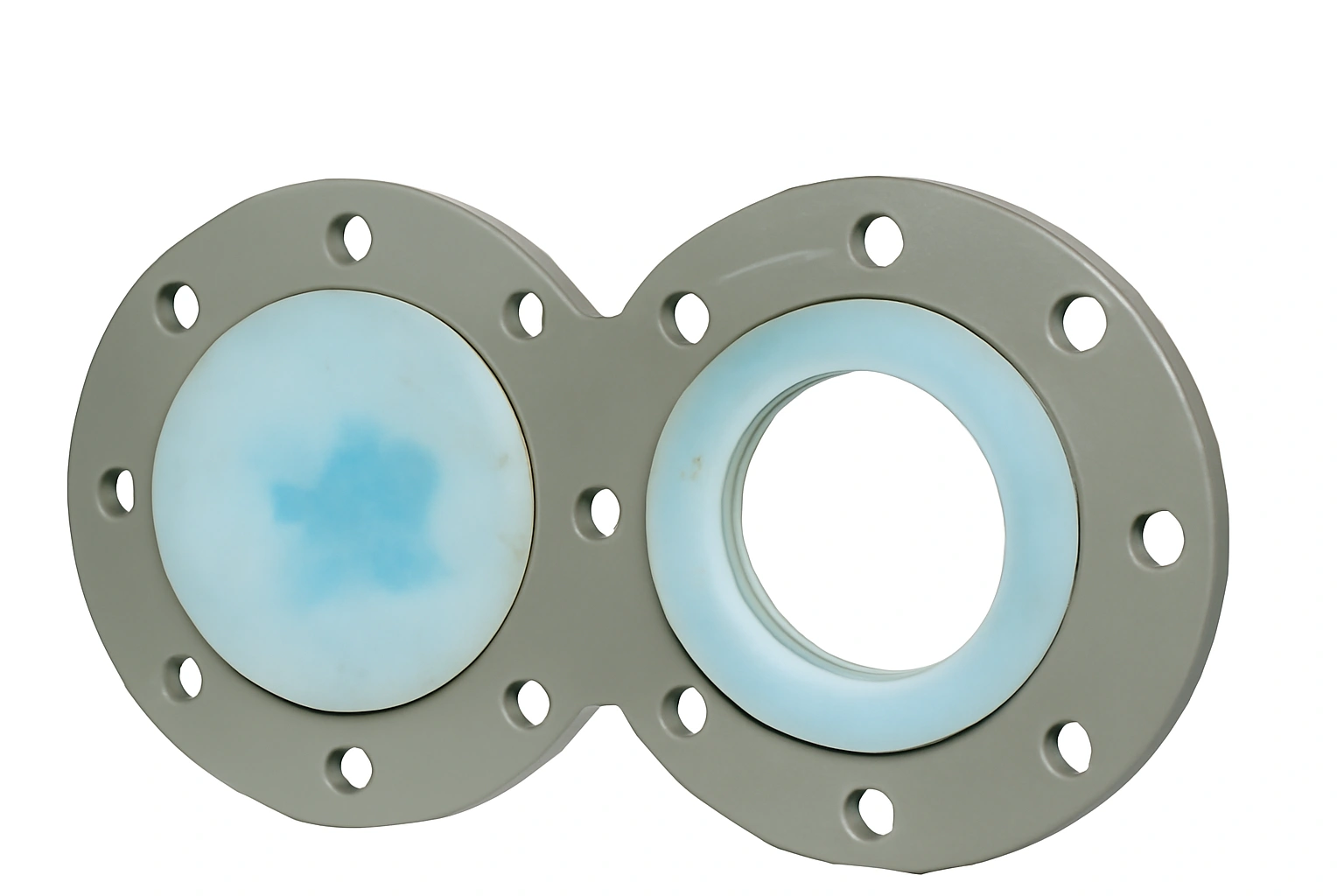

Lined Spectacle Blind
Lined Spectacle Blind

Lined Spectacle Blind

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 Spectacle Blind Ductile Iron ASTM A-395 (60 / 40 / 18) ANSI B 16.5 # 150
2 Polymer PFA ASTM D 3307 ASTM F1545:15a

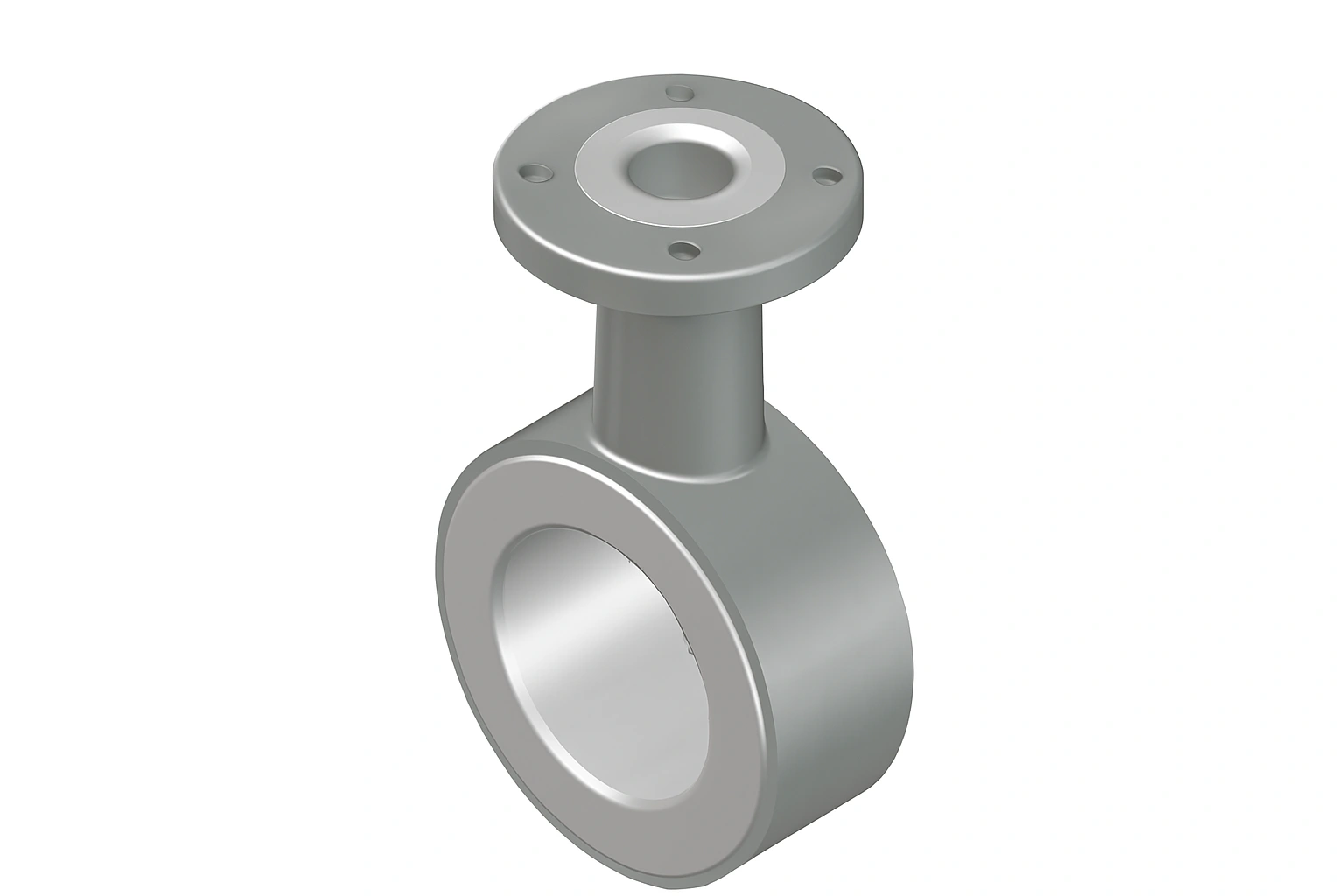

Lined Instrument Tee
Lined Instrument Tee

Lined Instrument Tee

Bill of Material
Part No. Item Material Spec. / STD Dimensional STD
1 INS. Tee Cast Housing Ductile Iron ASTM A-395 60/40/18 ANSI B 16.42 / ANSI B 16.5
2 Polymer PFA ASTM D 3307 ASTM F1545:15a
PPASTM D 4101
PVDFASTM D 3222
HDPEASTM D 3350
